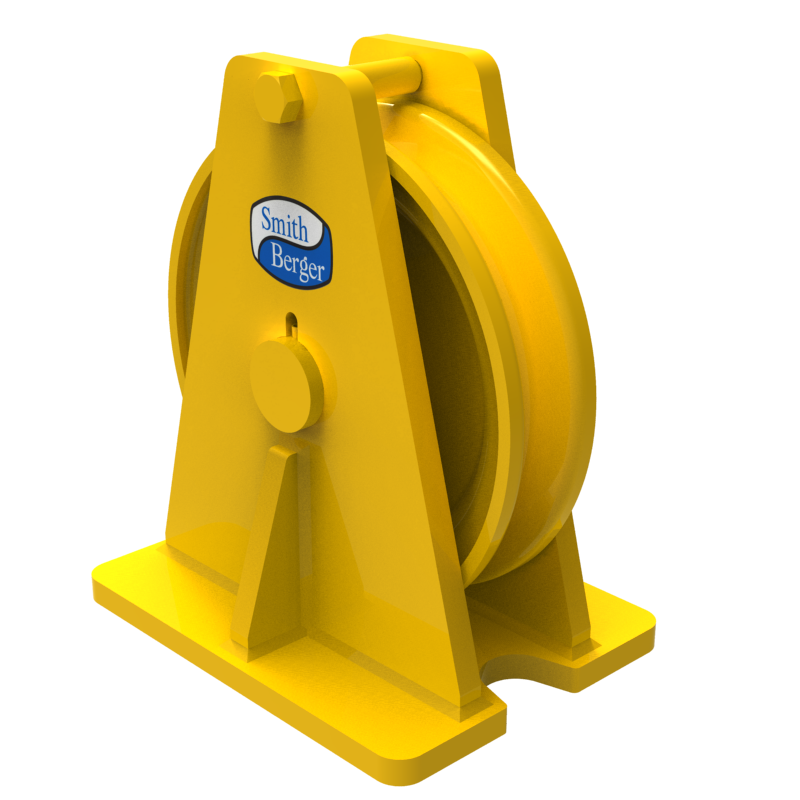

VERTICAL GUIDE SHEAVES

VERTICAL GUIDE SHEAVES

Standard Features

  • Designed for Breaking Strength of Wire Rope with 90° Wrap on the Sheave and 360° Rotation of Swivel heads
  • Cast Steel Sheave with Hardened Rope Groove for Longer Life
  • Sealed Grease Lubricated Tapered Roller Bearings in Sheave
  • Weld Down Mounting Base
  • Epoxy Primer Coating

Optional Features

  • Customized Design to Suit Your Application
  • Multiple Sheaves
  • Stainless Steel or Nylon Sheaves
  • Bolt Down Mounting Base
  • Load Monitoring System
  • Three Coat Marine Paint System
  • Third Party Certification

Download the PDF Brochures:

MD-1110 Max. Wire 3/4" (19mm)

MD-1112 Max. Wire 1" (25mm)

MD-1114 Max. Wire 1 1/4" (32mm)

MD-1118 Max. Wire 1 1/2" (38mm)

MD-1124 Max. Wire 2" (52mm)

MD-1130 Max. Wire 2 1/4" (58mm)

MD-1148 Max. Wire 2 1/2" (64mm)

Click here to request a C.A.D. drawing.

(Please specify which model you need.)
