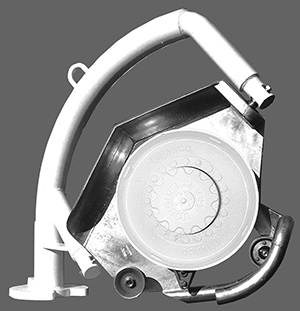

MARCO J0200 24 inch SWINGHAULER POT LINE HAULER / CRAB BLOCK

MARCO J0200 24 inch SWINGHAULER POT LINE HAULER / CRAB BLOCK
MARCO J0200 24 inch SWINGHAULER POT LINE HAULER / CRAB BLOCK

MARCO J0200 24 inch SWINGHAULER POT LINE HAULER / CRAB BLOCK

MARCO J0200 24 inch SWINGHAULER POT LINE HAULER / CRAB BLOCK

The MARCO J0200 offers a unique frame that eliminates dangerous movement while hauling. Using 24" sheaves, an oil lubricated Planetary Gear Drive and powerful motor this hauler can offer up to 5000 lbs of line pull.

Balanced Designed Swing Hauler.

  • Added Safety. The unique frame design eliminates dangerous movement common to top mounted haulers.

  • Trunnion mounted frame permits partial orientation forward or aft.

  • 24 Inch diameter Cast Iron or Stainless Steel sheaves, shim adjustable for use with 5/8" to 1 1/4" size line.

  • Low maintenance, sealed, oil lubricated Planetary Gear Drive.

  • Galvanized fabricated steel frame.

  • Galvanized fabricated steel fairlead.

  • Up to 5,000 pounds of line pull.

Maximum Recommended Line Size is 1 1/4" diameter. Sheaves are adjustable with shims to accommodate line sizes from 5/8" to 1 1/4"

Specifications:

Maximum Line Speed 600 Feet Per Minute

Maximum Line Pull 5000 lbs.

Construction:

Frame and Davit: Galvanized Fabricated Steel

Main Sheaves: Cast Iron, Cast Bronze or Stainless Steel

Idler Sheave: Cast Aluminum

Fairlead Sheave: Cast Stainless Steel

Splitter: Stainless Steel

Weight: 1420 Lbs.

Maximum Line Size: 1"

Lubricant: SAE 90 Multi-Purpose Gear Oil.
